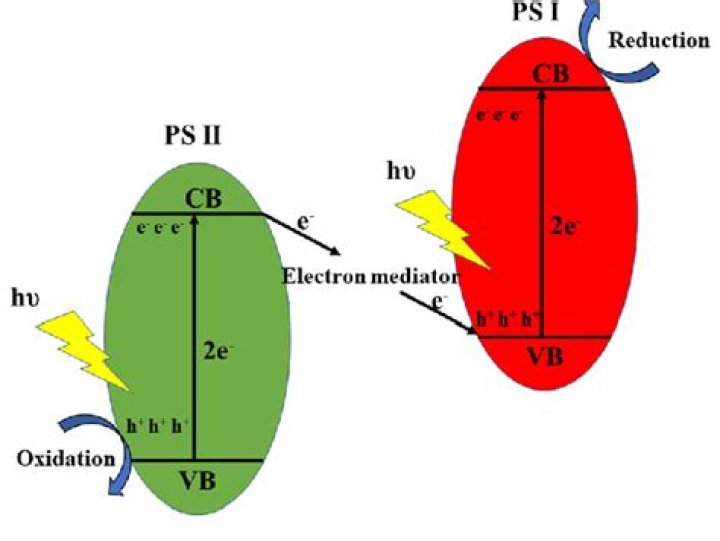

Z-scheme mechanism is widely used in photocatalysts with heterojunction between two semiconductors. This is a pathway for charge transfer between CB and VB of two semiconductors.
What is Z-scheme mechanism?
33 The electron cascade steps of vectorial charge flow profile in this two-step photoexcitation system resembles the alphabet Z, which give rise to the name of Z-scheme system. Its mechanism confers an efficient charge separation and demonstrates strong reduction and oxidation abilities within the system.
What is Z-scheme heterostructure?
Generally, in Z-scheme heterojunction the photogenerated electrons in lower conduction band (CB) position of one semiconductor can transfer to the valence band (VB) of another semiconductor with higher potential after being excited.
What is Z scheme why it is called so?
The Z scheme of electron transport links the two photosystems i.e., PSI and PS II together. The schematic diagram showing the flow of electrons from water to NADP+. It is called the Z scheme because it links the two photosystems in a way that resembles the letter “Z”.
What is Z scheme heterojunction?
The Z-scheme heterojunction has a high separation efficiency of electron–hole pairs with strong redox ability and a wide light response range. The abovementioned advantages make the Z-scheme heterojunction provide a great opportunity for the conversion of CO2 to value-added chemicals.
Why Z scheme is called so?
– The energy splits the water and extracts the electrons from it, these electrons are formed in the photosystem II move from that system to cytochrome b6 and to Photosystem I. It links the two photosystems in form Z. Hence, the correct answer is option (A).
Why are light reactions called Z schemes?
The electron transport chain of photosynthesis is often put in a diagram called the z-scheme, because the redox diagram from P680 to P700 resembles the letter Z. to NADPH. Activities of the electron transport chain, especially from cytochrome b6f, lead to pumping of protons from the stroma to the lumen.
What is Z scheme Main Event?
In the Z‐scheme, electrons are removed from water (to the left) and then donated to the lower (non‐excited) oxidized form of P680. Absorption of a photon excites P680 to P680*, which “jumps” to a more actively reducing species. P680* donates its electron to the quinone‐cytochrome bf chain, with proton pumping.
Where does cyclic Photophosphorylation occur?
stroma lamella
Cyclic photophosphorylation This form of photophosphorylation occurs on the stroma lamella, or fret channels. In cyclic photophosphorylation, the high-energy electron released from P700 of PS1 flows down in a cyclic pathway.
Who discovered Z scheme?
reducing it; (b) Experimental discovery of the two light reactions and two pigment systems and the Z-scheme of photosynthesis: Robert Emerson’s discovery, in 1957, of enhancement in photosynthesis when two light beams (one in the far-red region, and the other of shorter wavelengths) are given together than when given …
What is the other name of Z scheme?
Light-Dependent Reactions (Z Scheme) (Neațu et al., 2014) Light-dependent reactions happen in the thylakoid membrane of the chloroplasts and occur in the presence of sunlight. The sunlight is converted to chemical energy during these reactions.
Why is the Z scheme needed in photosynthesis?
The Z scheme shows the pathway of electron transfer from water to NADP+. Using this pathway, plants transform light energy into “electrical” energy (electron flow) and hence into chemical energy as reduced NADPH and ATP.
What is a Z-scheme photocatalyst?
As a result, a Z-scheme photocatalyst simultaneously has the strong redox ability for driving photocatalytic reactions and the spatially separated reductive and oxidative active sites. Moreover, the semiconductor photocatalyst with narrow bandgap can be selected to construct direct Z-scheme photocatalysts to broaden the light-harvesting range.
How do you synthesize [email protected]/GR photocatalyst?
Scheme 1 Synthesis of a direct Z-scheme [email protected]/GR photocatalyst. Synthesis of CdS QDs and their modification with IL (IL-CdS). CdS QDs were synthesized by an ion precipitation method.11 In a typical synthesis process, Na2S and Cd (NO3)2 were each dispersed in water at 0.01 mol L−1; then, the respective solutions were adjusted to pH 2.0 with HCl.
Can semiconductor photocatalysts with narrow bandgap be constructed directly?
Moreover, the semiconductor photocatalyst with narrow bandgap can be selected to construct direct Z-scheme photocatalysts to broaden the light-harvesting range. For instance, Cu 2 [email protected] 3 N 4 with core–shell structure was successfully fabricated, which was confirmed to be a Type-Ⅱ heterojunction [54].
What is a direct Z-scheme charge carrier transfer pathway?
In a typical direct Z-scheme charge carrier transfer pathway, the photogenerated electrons with strong reduction abilities in the CB of PC Ⅰ and holes with strong oxidation abilities in the VB of PC Ⅱ are preserved, while the photogenerated electrons in the CB of PC Ⅱ and holes in the VB of PC Ⅰ with inferior redox power recombine.
