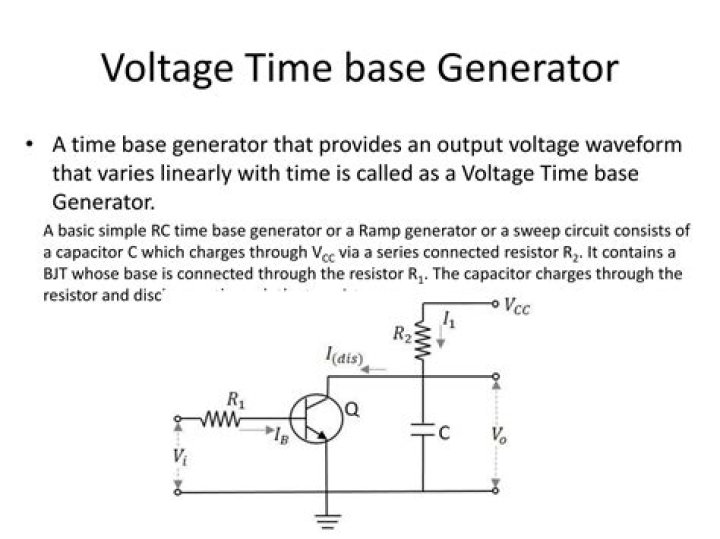

A time base generator that provides an output voltage waveform that varies linearly with time is called as a Voltage Time base Generator.
What are the applications of voltage time base generator?
Applications. Time Base Generators are used in CROs, televisions, RADAR displays, precise time measurement systems, and time modulation.
What is the difference between time base generator and voltage base generator?
These are basically of two types: Voltage time-base generator: It generates a voltage that varies linearly according to time and finds its application in electrostatic deflection. Current time-base generator: It generates linearly varying current with respect to time at the output.
What is the significance of voltage time base generators explain?
Time Base Generator is a specially designed electronic function generator to produce various time base signals by generating varying voltage or current. This generated linear time-varying voltages are used in a Cathode-ray tube to deflect the electron beam in a horizontal direction.
What is time base voltage?
From Wikipedia, the free encyclopedia. A time base generator (also timebase or time base) is a special type of function generator, an electronic circuit that generates a varying voltage to produce a particular waveform.
What are the basic time base requirements?
Requirements of time base: Time accuracy is better than 3%. Linearity better is better than 1% across the cathode ray tube. Ten times expansion in the horizontal amplifier which allows 1 nsec per division displays for very high speed transients. The speed of the spot should be constant across the entire screen.
What is the role of time base CKT?
A time base generator (also timebase or time base) is a special type of function generator, an electronic circuit that generates a varying voltage to produce a particular waveform.
What is the purpose of a time base?
What is linear time base generator?
Definition: The generator which is used for generating the linear variable voltage concerning time is known as the time base generator. These waves are used in cathode ray tube for deflecting the beam in a horizontal direction. The velocity operates with the deflecting voltage increases linearly with the time.
Which is the type of triggered time base generator?
Explanation: In a Cathode Ray Oscilloscope, the trigger circuit is basically used for triggering the time base generator. It triggers the time base generator and produces a ramp signal. 4. Time base generator takes certain time to begin a new cycle.
Which amplifier is used in Miller time base generator?
Ans:In miller time base generator an inverting amplifier with a gain of infinity is required.
How many types of time base generators are there?
There are two types of Time base Generators. They are − Voltage Time Base Generators − A time base generator that provides an output voltage waveform that varies linearly with time is called as a Voltage Time base Generator.
What is sweep voltage in a time base generator?
The horizontal velocity of a time base generator must be constant. To display the variations of a signal with respect to time on an oscilloscope, a voltage that varies linearly with time, has to be applied to the deflection plates. This makes the signal to sweep the beam horizontally across the screen. Hence the voltage is called as Sweep Voltage.
Why is the horizontal velocity of a time base generator constant?
The horizontal velocity of a time base generator must be constant. To display the variations of a signal with respect to time on an oscilloscope, a voltage that varies linearly with time, has to be applied to the deflection plates.
What are the features of a time base signal?
Features of a Time Base Signal To generate a time base waveform in a CRO or a picture tube, the deflecting voltage increases linearly with time. Generally, a time base generator is used where the beam deflects over the screen linearly and returns to its starting point. This occurs during the process of Scanning.
