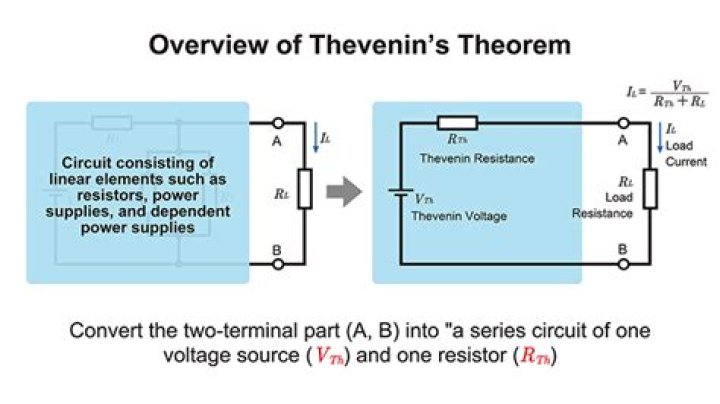

Thevenin’s theorem states that it is possible to simplify any linear circuit, irrespective of how complex it is, to an equivalent circuit with a single voltage source and a series resistance.
How do you solve the Thevenin Theorem question?
Step by step procedure to solve Thevenin’s theorem Open the load resistor and measure the voltage across the terminals by any of the network simplification methods. This voltage is called as Thevenin’s voltage (Vth). Remove the load resistor. Replace all voltage and current sources by their internal resistance.
How do you calculate RTH and VTh?
Calculate RTh = VTh / IN. Alternate method (for circuits that consist only of independent sources and resistors). 1. Using whatever techniques are appropriate, calculate the open- circuit voltage at the port of the circuit: voc = VTh.
How do you calculate Thevenin equivalent?
To calculate the Thevenin equivalent resistance, remove all power sources from the original circuit. And voltage sources are short-circuited and current sources are opened. Hence, the remaining circuit has only resistances. Now, calculate the total resistance between the open connection points across load terminals.
What are the applications of Thevenin’s theorem?
Thevenin’s Theorem is especially useful in analyzing power systems and other circuits where one particular resistor in the circuit (called the “load” resistor) is subject to change, and re-calculation of the circuit is necessary with each trial value of load resistance, to determine voltage across it and current …
What is the statement of Thevenin’s theorem?
Thevenin’s Theorem states that it is possible to simplify any linear circuit, no matter how complex, to an equivalent circuit with just a single voltage source and series resistance connected to a load.
What is rth in Thevenin’s theorem?
The equivalent resistance Rth is the resistance that the circuit between terminals A and B would have if all ideal voltage sources in the circuit were replaced by a short circuit and all ideal current sources were replaced by an open circuit.
How do you verify Thevenin Theorem?
- RL=VLIL. 3) Remove the load by opening the switch S2 and read the open circuit voltage (or Thevenin equivalent voltage) Vth.
- Rth=VI. 5) Now compute the load current.
- IL=VthRth+RL. 6) Compare the above computed load current with its observed value in step (2) and verify the theorem.
What are the limitations of Thevenin theorem?
Limitations of Thevinen’s Theorem If the circuit consists of non linear elements, this theorem is not applicable. Also to the unilateral networks it is not applicable. There should not be magnetic coupling between the load and circuit to be replaced with the thevinen’s equivalent.
What are the applications of Thevenin’s Theorem?
What are the advantages of using Thevenin theorem?
Get Closer to Thevenin’s Theorem.
What is the difference between Thevenin’s and Norton theorem?
Difference Between Thevenin and Norton. – Thevenin’s theorem uses a resistor in series, while Norton’s theorem uses a resister set in parallel with the source. – Norton’s theorem is actually a derivation of the Thevenin’s theorem. – The Norton’s resistance and Thevenin’s resistance are equal in magnitude.
What are the limitations of Thevenin’s theorem?
Limitations of Thevenin Theorem Thevenin Theorem is not applicable to the circuits that contain nonlinear elements like transistors and diodes etc. It is not applicable to the circuits having unilateral elements like diode etc. Thevenin’s Theorem cannot be used for the circuits that contain magnetic coupling between load and any other circuit element.
