Some standard values for a potentiometer are 500Ω, 1K, 2K, 5K, 10K, 22K, 47K, 50K, 100K, 220K, 470K, 500K, 1 M. Resistors are also classified based on how much current it can allow; this is called Power (wattage) rating. The higher the power rating the bigger the resistor gets and it can also more current.
How is potentiometer value calculated?
Potential gradient is calculated as K = V/L, where V is the voltage across the potentiometer wire and the L is the length of the wire in the potentiometer. So the unit of potential gradient is volts/meter.
How do you read a potentiometer preset?
Identifying values of Preset Potentiometer The value of a preset potentiometer will be written on top of it in three digits, something similar to ceramic capacitors. The first two digits is the actual value and the 3rd digit has to be taken to the power of ten.
What is a 10K ohm potentiometer?
It is a single turn 10k Potentiometer with a rotating knob. These potentiometers are also commonly called as a rotary potentiometer or just POT in short. These three-terminal devices can be used to vary the resistance between 0 to 10k ohms by simply rotating the knob.
What is the range of a 10K potentiometer?
A ’10K Potentiometer’ is a potentiometer that has a 10kΩ resistance. When you move your wiper, this will adjust the variable resistor resistance from 0Ω up to 10kΩ. 10K Potentiometers can come as rotary, linear and many other types of potentiometers.
How is a 10K potentiometer connected in a circuit?
Connect the voltmeter’s terminals to the input and output terminals on the pot. Turn the voltmeter on and turn the dial to feed a signal. Turn the knob on top of your pot to adjust the signal. If the signal reading on the voltmeter goes up and down when you turn the knob, your potentiometer works.
How do you read potentiometer numbers?
The first 3 digits on a pot are the manufacturer code. The last 3 or 4 digits are the date code. With 3 digits, the first digit is the last digit of the year, and the last digit is the week number. With 4 digits, the first 2 digits are the last 2 digits of the year.
What is a trimpot potentiometer?
A trimpot or trimmer potentiometer is a small potentiometer which is used for adjustment, tuning and calibration in circuits. When they are used as a variable resistance (wired as a rheostat) they are called preset resistors.
What is the difference between a trimmer and a potentiometer?
Potentiometers are variable resistors that feature an adjustable knob or dial used to change the location of the output contact. Trimmers are potentiometers which need infrequent adjustment. They are often used to calibrate a device or circuit after manufacturing, and often require a special tool for adjustment.
What is a 10k potentiometer used for?
Potentiometers are very useful in changing the electrical parameters of a system. It is a single turn 10k Potentiometer with a rotating knob. These potentiometers are also commonly called as a rotary potentiometer or just POT in short.
How do you read an analog value from a potentiometer?
By connecting an output pin of the potentiometer to an analog input pin, we can read the analog value from the pin, and then converts it to a meaningful value. The value Arduino get is NOT angle, NOT voltage. It is integer value ranges from 0 to 1023.
What is the power rating of a potentiometer?
Resistors are also classified based on how much current it can allow; this is called Power (wattage) rating. The higher the power rating the bigger the resistor gets and it can also more current. For potentiometers the power rating is 0.3W and hence can be used only for low current circuits.

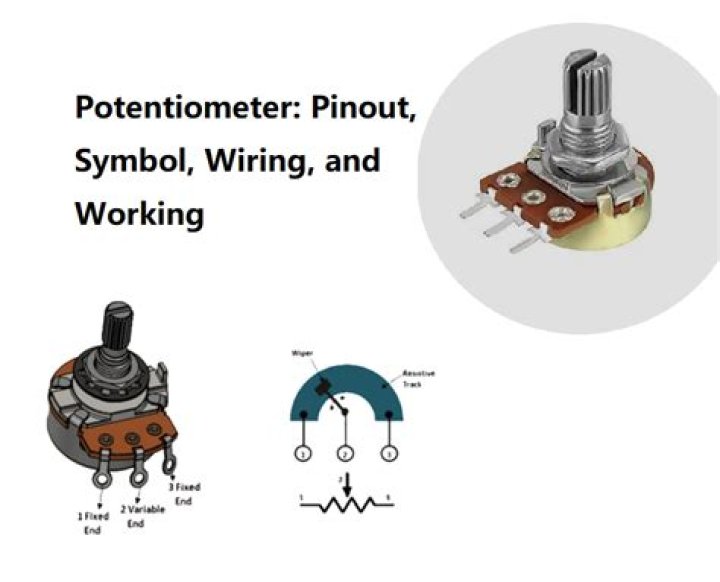

How many pins does a potentiometer usually have?
Potentiometer usually has 3 pins: 1 GND pin needs to be connected to GND (0V) 2 VCC pin needs to be connected to VCC (5V or 3.3v) 3 Output pin outputs the voltage to Arduino’s input pin.
How to program for potentiometer?
How To Program For Potentiometer. Read the value from an input pin, which connected to the output pin of the potentiometer. Rescale to the controllable value (e.g volume of stereo, brightness, speed of DC motor…
