A hydraulic grade line (HGL) is: ‘A theoretical line showing the sum of the pressure elevation heads of a flow relative to a datum. For uniform open-channel flow, the hydraulic grade line is the same as the water surface. The slope of the hydraulic grade line is the hydraulic gradient. ‘
What is a hydraulic slope?
The hydraulic gradient (1) is the slope of the water table or potentiometric surface, that is, the change in water level per unit of distance along the direction of maximum head decrease. The hydraulic gradient is the driving force that causes groundwater to move in the direction of maximum decreasing total head.
What is hydraulic grade line?
The surface or profile of water flowing in an open channel or a pipe flowing partially full. If a pipe is under pressure, the hydraulic grade line is that level water would rise to in a small, vertical tube connected to the pipe.
What does the hydraulic gradient line represents?
Hydraulic gradient Line (H.G.L) – Line representing the sum of pressure head and datum head. Total energy line (T.E.L) – Line representing the sum of pressure head, datum head, and velocity head. From above, the Hydraulic gradient line (HGL) represents the sum of pressure head and datum head.

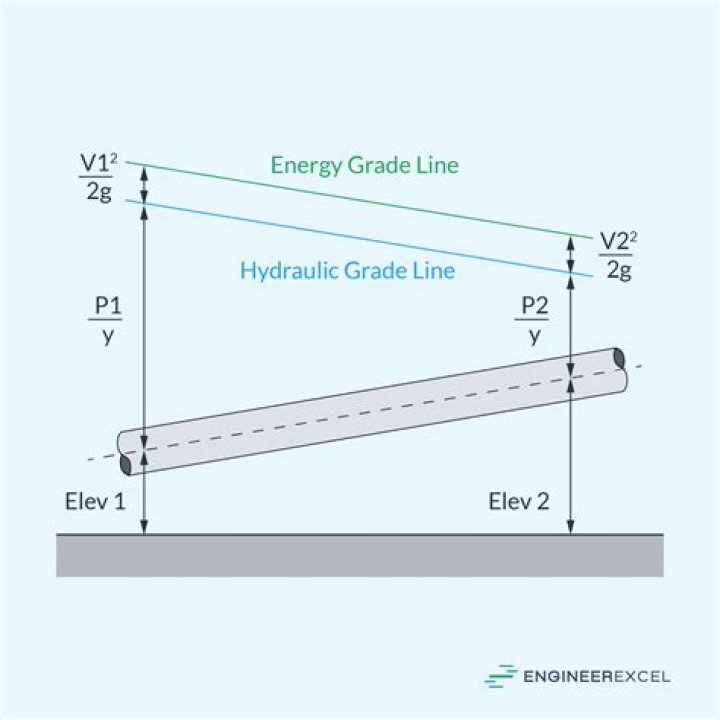

What is hydraulic grade line and energy line?
The distance from the centerline of the pipe to the HGL is the pressure head. An HGL above a pipe corresponds to positive pressure while an HGL below the centerline means that the pressure is negative. An energy grade line (EGL) shows the variation of the total head.
What is energy grade line and hydraulic grade line?
A line that represents the elevation of energy head (in feet or meters) of water flowing in a pipe, conduit, or channel. The line is drawn above the hydraulic grade line (gradient) a distance equal to the velocity head (V2/2g) of the water flowing at each section or point along the pipe or channel.
Why the slope of EGL and HGL will slope downward in flow direction?
Definition: Total Energy Line or Energy Grade Line i.e. TEL is defined as a line joining the points representing the total head. But for real fluid, it will always slope down in the direction of flow because the energy must decrease in the direction of flow.
What is the hydraulic grade line in fluid mechanics?
The Hydraulic Grade Line is a line representing the total head available to the fluid – minus the velocity head and can be expressed as: The hydraulic grade line lies one velocity head below the the energy line. Fluid Mechanics – The study of fluids – liquids and gases.
How do you find the grade line of a hydraulic column?
The Hydraulic Grade Line. The Hydraulic Grade Line is a line representing the total head available to the fluid – minus the velocity head and can be expressed as: HGL = p / γ + h (4) where. HGL = Hydraulic Grade Line (m fluid column) The hydraulic grade line lies one velocity head below the the energy line.
What is the hydraulic grade of a pipe?
In closed conduits flowing under pressure, the hydraulic grade line is the level to which water would rise in a vertical tube (open to atmospheric pressure) at any point along the pipe. HGL is determined by subtracting the velocity head (V2/2g) from the energy gradient (or energy grade line).
What is the distance between the pipe centerline and hydraulic grade line?
The distance between the pipe centerline and the hydraulic grade line is the pressure head, or piezometric height, at the section. The line showing the pressure head, or piezometric height, at any point in a pipe. The slope of the hydraulic grade line is known as the hydraulic gradient.
