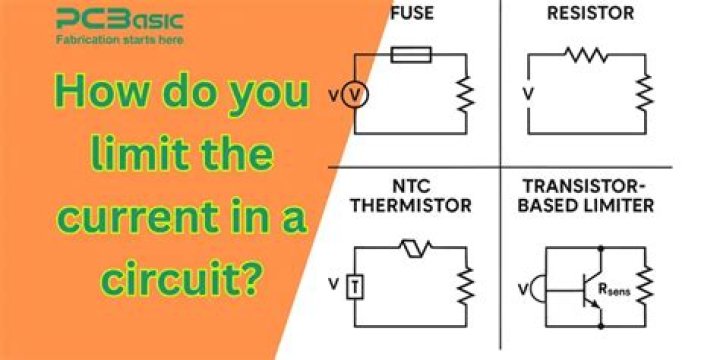

Current limiting is the practice of imposing a limit on the current that may be delivered to a load to protect the circuit generating or transmitting the current from harmful effects due to a short-circuit or overload. The term “current limiting” is also used to define a type of overcurrent protective device.
How much current can a LM317 handle?
The LM317 is an adjustable voltage linear regulator that can output 1.25 – 37V at up to 1.5A current with an input voltage range of 3 – 40V.
How does LM317T work?
The LM317T is an adjustable 3-terminal positive voltage regulator capable of supplying different DC voltage outputs other than the fixed voltage power supply of +5 or +12 volts, or as a variable output voltage from a few volts up to some maximum value all with currents of about 1.5 amperes.
What is meant by current limit?
a device, as a resistor or fuse, that limits the flow of current to a prescribed amount, independent of the voltage applied.
Does voltage limit current?
3 Answers. At the very theoretical end: no, it’s limited by other factors. It’s possible to have a superconductor carrying a current; this would then have zero voltage across it.
How does current limiting reactor work?
Current Limiting Reactors are connected in series with the power system essentially to damp the short circuit fault current. During normal operation, a continuous current flows through the reactor. Current limiting reactors are now widely used to control fault currents in both utility and industrial power systems.
How do you increase the output current of LM317?
The popular LM317 voltage regulator IC is designed to deliver not more than 1.5 amps, however by adding an outboard current boost transistor to the circuit it becomes possible to upgrade the regulator circuit to handle much higher currents, and upto any desired levels.
What is the maximum input voltage for a LM317?
Capable of providing upto 1.5A current at the output.
What is an inrush current limiter?
An inrush current limiter is a component used to limit inrush current to avoid gradual damage to components and avoid blowing fuses or tripping circuit breakers. Negative temperature coefficient (NTC) thermistors and fixed resistors are often used to limit inrush current.
What is a voltage regulator circuit?
Series voltage regulator circuit. The series voltage regulator circuits operate by using a series control element such as a bipolar transistor or a field effect transistor. The basis of operation of the circuit hinges around controlling the conductance of this series element by a control voltage.
What is voltage limiter?
Voltage Reducers and Voltage Limiters are two terms with the same. meaning. They are used in conjunction with two 8 volt batteries to reduce. the voltage from 16 VDC nominal to approximately 13 VDC.
