In the case of an octahedral coordination compound having six ligands surrounding the metal atom/ion, we observe repulsion between the electrons in d orbitals and ligand electrons. This repulsion is experienced more in the case of dx2-y2 and dz2 orbitals as they point towards the axes along the direction of the ligand.
Why crystal field splitting is more in octahedral complexes?

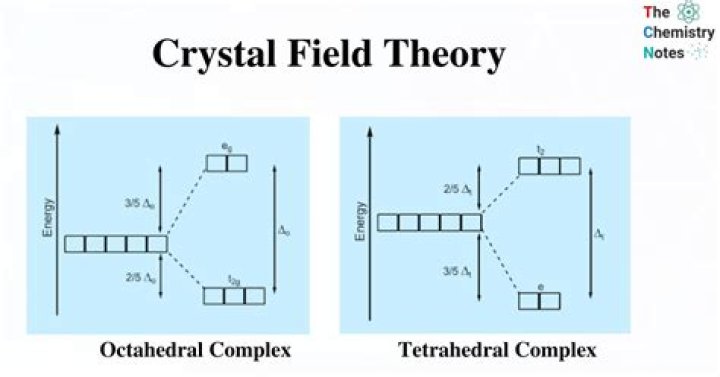

For octahedral complexes, crystal field splitting is denoted by Δo (or Δoct). The energies of the dz2 and dx2−y2 orbitals increase due to greater interactions with the ligands. The dxy, dxz, and dyz orbitals decrease with respect to this normal energy level and become more stable.
What is the formula of Cfse for octahedral complexes?
[Co(CN)64-] is also an octahedral d7 complex but it contains CN-, a strong field ligand. Its orbital occupancy is (t2g)6(eg)1 and it therefore has one unpaired electron. In this case the CFSE is −(6)(25)ΔO+(1)(35)ΔO+P=−95ΔO+P.
What is crystal field theory explain with example?
The Crystal Field Theory (CFT) is a model for the bonding interaction between transition metals and ligands. It describes the effect of the attraction between the positive charge of the metal cation and negative charge on the non-bonding electrons of the ligand.
What is crystal field splitting 12?
The splitting of the degenerate levels due to the presence of ligands is called the crystal-field splitting while the energy difference between the two levels (eg and t2g) is called the crystal-field splitting energy. It is denoted by ∆o. d-orbital splitting in an octahedral crystal field.
What is crystal field splitting in octahedral complexes?
In an octahedral complex, the d orbitals of the central metal ion divide into two sets of different energies. The separation in energy is the crystal field splitting energy, Δ. (A) When Δ is large, it is energetically more favourable for electrons to occupy the lower set of orbitals.
How octahedral complexes are formed?
According to CFT, an octahedral metal complex forms because of the electrostatic interaction of a positively charged metal ion with six negatively charged ligands or with the negative ends of dipoles associated with the six ligands. In addition, the ligands interact with one other electrostatically.
What is Cfse in octahedral complex?
CFSE (Crystal field stabilisation energy) is the calculation of energy of a complex compound. If electron enters the ${{e}_{g}}$ orbitals it destabilizes the complex and if electron enters the ${{t}_{2g}}$ orbitals it stabilizes the complex in case of an octahedral complex .
What is Cfse for d4 ion in weak field octahedral complex?
Crystal field stabilization energy (C.F.S.E) for low spin d4 octahedral complex is: -0.600 1.8A0 1.600 + P 4 1.2Ao.
Which of the following shows zero octahedral Cfse?
For d5 system, the CFSE will be zero if the ligand is weak.
What is the relation between Delta T and Delta?
Also the deltao (unable to use symbols for CFSE) represents the energy difference between the t2g set and the eg set of orbitals in octahedral field And the delta t is the energy difference between the e set and t2 set of orbitals in a tetrahedral field.
What causes crystal field splitting in octahedral complexes?
This causes a splitting in the energy levels of the d -orbitals. This is known as crystal field splitting. For octahedral complexes, crystal field splitting is denoted by Δo (or Δoct ). The energies of the dz2 and dx2 − y2 orbitals increase due to greater interactions with the ligands.
What is the stabilization energy of an octahedral crystal field?
Octahedral crystal field stabilization energy. If the splitting of the d-orbitals in an octahedral field is Δoct, the three t2g orbitals are stabilized relative to the barycenter by 2/5 Δoct, and the eg orbitals are destabilized by 3/5 Δoct. As examples, consider the two d5 configurations shown further up the page.
What is the energy difference between tetrahedral and octahedral?
In a tetrahedral crystal field splitting, the d-orbitals again split into two groups, with an energy difference of Δtet. The lower energy orbitals will be dz2 and dx2-y2, and the higher energy orbitals will be dxy, dxz and dyz – opposite to the octahedral case.
What is a pentagonal bipyramidal molecule?
Pentagonal Bipyramidal is AX7, so one more bonding site than octahedral (AX6). Also, one example of a pentagonal bipyramidal molecule would be IF7. Does anyone know where in the textbook I could find a diagram for this?
