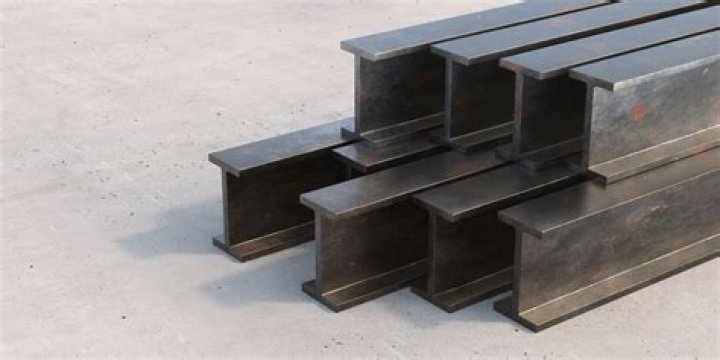

W-Beams, so called because they are technically known as Wide-Flange Beams, come in a wide variety of size from 4” tall to 44” tall. Note: the size description of the W-beams are always listed as height of beam x lbs. per foot of beam (ex. 8×31 is 8” tall with a load capacity of 31 pounds per foot).
What are w beams used for?
Wide flange beams are mainly used as structural support materials for building. They can bear a lot of weight, but there are various sizes that can be used for different purposes. Wider flanges help distribute weight of a structure over a wider area.
How are w beams named?
The wide flange beam is named due to its shape. The parallel pieces are known as flanges, which are wider than I-beam – hence the name wide flange beam – and the line drawing included piece is called the web.
What are w beams made of?
What is a Wide Flange Steel Beam? A wide flange steel beam is a structural product made of rolled steel. Known for its sturdiness and ability to hold up large and heavy buildings, the wide flange beam is preferable in construction projects.
What is WT structural steel?
WT steel is steel with improved toughness. This type of steel must meet specific testing requirements, based on the daily mean minimum temperature in the location where it is to be used.
What is the size of a W beam?
Note: the size description of the W-beams are always listed as height of beam x lbs. per foot of beam (ex. 8×31 is 8” tall with a load capacity of 31 pounds per foot). These beams are also sometimes referred to as H-beams because on their side, the cross section looks like a capital H.
What are the different types of steel beams?
Lets start with the most widely used beam for structural steel. W-Beams, so called because they are technically known as Wide-Flange Beams, come in a wide variety of size from 4” tall to 44” tall.
What is the difference between W-shaped and H-shaped beams?
For beams, W-shapes are the go-to. Also called “H-piles”, and being driven as piles is a common application for these shapes. Like the W-shapes they have parallel inner and outer flange surfaces. Unlike W-shapes, the width of the flanges is approximately equal to the beam depth and the web has the same thickness as the flanges.
What is a w24x62 beam?
Each section is identified by the shape designation, the approximate depth, and the weight per foot. For example, W24x62 is a wide flange beam, 24.5″ deep and weighing 62 lb/ft. Overall beam depth at least equal to and often significantly greater than than the flange width.
