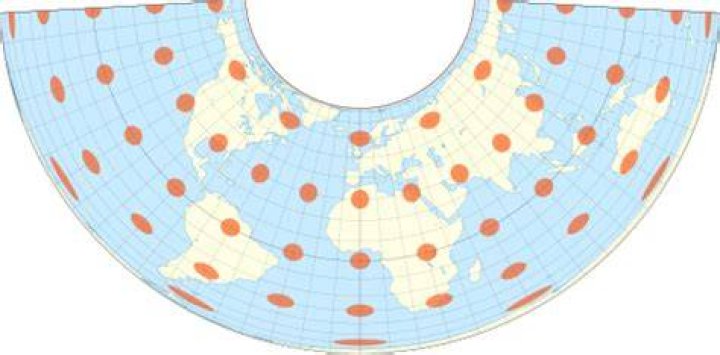

An Albers projection shows areas accurately, but distorts shapes. The Albers equal-area conic projection, is a map projection that uses two standard parallels to reduce some of the distortion of a projection with one standard parallel.
What type of projection is NAD 1983 contiguous Albers?
Equal-Area Conic Projection
Albers Equal-Area Conic Projection(Albers) With standard parallels of 29.5 and 45.5 degrees, this projection is one commonly used to depict the United States.
What does a Lambert map projection show?
Description. The Lambert azimuthal equal-area projection maintains land features at their true relative sizes while simultaneously maintaining a true sense of direction from the center. The world is projected onto a flat surface from any point on the globe.
What projection does California use?
North American Datum of 1983 (NAD83) replaced NAD27 and was adopted as the official datum for California and the United States. It is an earth-centered datum based on ground control points and satellite observations.
What type of projection is Albers equal-area?
equal area conic projection
Description. The Albers projection is an equal area conic projection. It uses two standard parallels to reduce some of the distortion found in a projection with only one standard parallel. The projection is best suited for land masses extending in an east-to-west orientation at mid-latitudes.
What are major differences between Albers equal area conic projection and Lambert Conformal Conic projection?
As you might suppose, the Albers Equal Area Conic projection is a conic projection that maintains accurate area measurements. It differs from the Lambert Conformal Conic projection in preserving area rather than shape and in representing both poles as arcs rather than one pole as a single point.
What type of projection is Albers equal area?
What type of coordinate system is NAD 1983?
NAD83 is an acronym for North American Datum of 1983, a geocentric datum and geographic coordinate system based on the 1980 Geodetic Reference System ellipsoid (GRS80). Mainly used in North America, its measurements are obtained from both terrestrial and satellite data.
What charts use Lamberts conical projection?
A Lambert conformal conic projection (LCC) is a conic map projection used for aeronautical charts, portions of the State Plane Coordinate System, and many national and regional mapping systems.
Is state plane a projected coordinate system?
State Plane Coordinate System (SPCS) is not a projection (also known as SPC, State Plane, and State). It is a coordinate system that divides the 50 states of the United States, Puerto Rico, and the U.S. Virgin Islands into more than 120 numbered sections, referred to as zones.
What is the Albers equal area conic projection?
The Albers equal-area conic projection, or Albers projection (named after Heinrich C. Albers), is a conic, equal area map projection that uses two standard parallels. Although scale and shape are not preserved, distortion is minimal between the standard parallels. The Albers projection is used by the United States Geological…
Is the Albers projection used in the US?
Although scale and shape are not preserved, distortion is minimal between the standard parallels. The Albers projection is used by the United States Geological Survey and the United States Census Bureau. Most of the maps in the National Atlas of the United States use the Albers projection.
How do you find Lambert equal area conic projection coordinates?
Coordinates from a spherical datum can be transformed into Albers equal-area conic projection coordinates with the following formulas, where If just one of the two standard parallels of the Albers projection is placed on a pole, the result is the Lambert equal-area conic projection.
