In automobile manufacturing: Steel shims are used regularly in the manufacturing of automobile parts. Shims allow for a greater flexibility when it comes to the clearance level of a particular part, such as a valve. In plumbing repairs: Shims are used to align pipes when a plumber needs to do some repairs.
What’s the difference between a shim and a wedge?
The wedge provides any thickness desirable, theoretically to the . 001”, but only one contact point. The shim is constrained to an exact thickness but can make contact with as much surface area as desired.
What is a wedge shim?
Plain and simple, a shim is a tapered wedge used for making slight adjustments to home elements, such as door frames and windows, to make them plumb and level. The most common shims are wood (often cut from cedar or pine) and serve well for almost any interior adjustment.

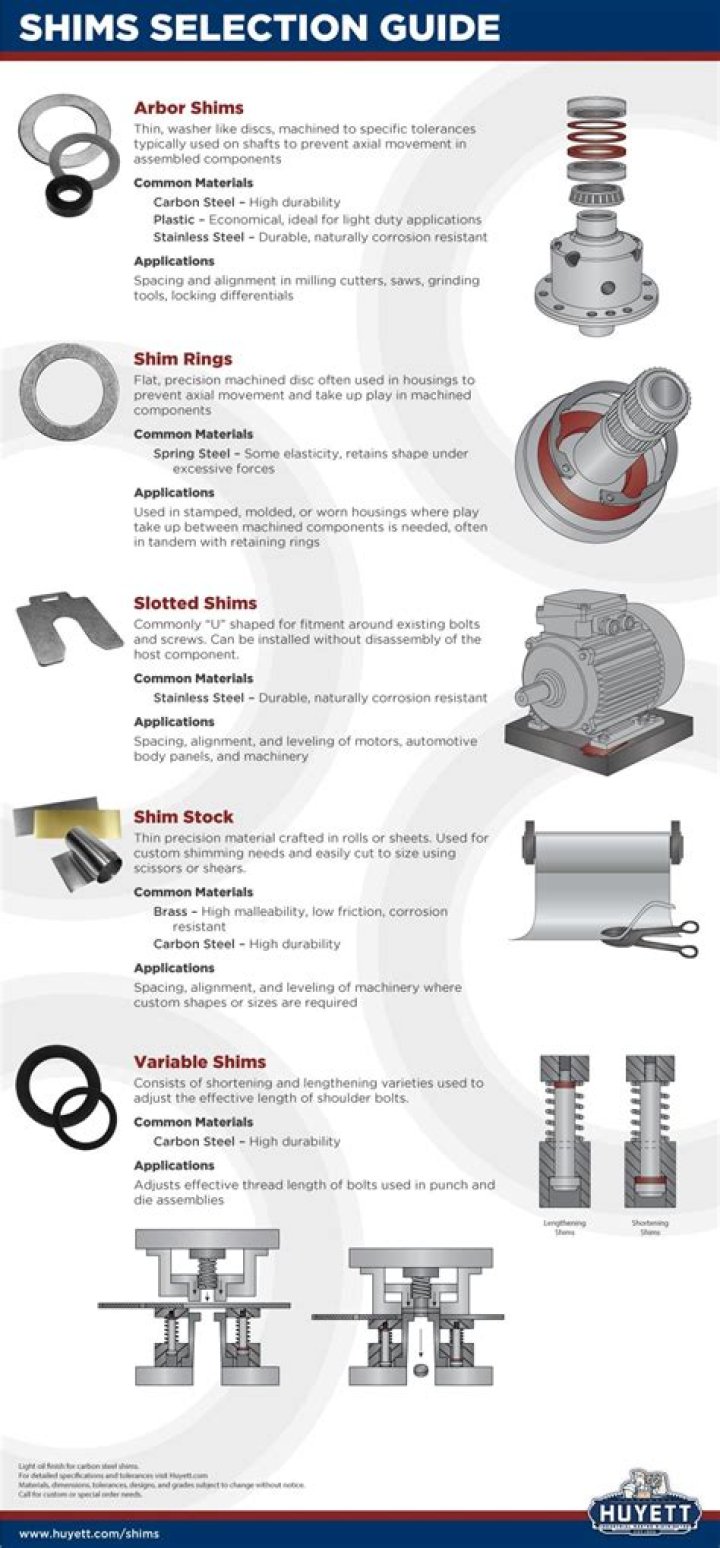

What do metal shims adjust?
In automobiles, shims are commonly used to adjust the clearance or space between two parts. For example, shims are inserted into or under bucket tappets to control valve clearances. Clearance is adjusted by changing the thickness of the shim.
What are stainless steel shims used for?
The typical application of these shims is to fill up the gaps between the parts and components of the machines that tend to wear when alignment is out .
Are shims and spacers the same thing?
A shim is a component used to fill up an unwanted gap. Shims may be flat or tapered, and are often specified as “select to fit” parts, rather than as a part with a predefined thickness. A spacer or standoff is a fixed size component designed to separate two other parts by a known amount.
Do you screw through shims?
The screws must penetrate through shims so they don’t stress the doorframe. Countersink the screw heads a small amount so they don’t interfere with the hinge when you put it back in place.
What are builders wedges used for?
What are builders wedges use for? Builders Wedges are used as load bearing spacers for wood flooring and decking, window and door casings, roofing timbers and rafters. Serrated surfaces, non-slip performance. Wood wedges are often used for leveling.
How thick should a shim be?
The 0.5° should be enough for most jobs but it’s nice to have the option of something bigger (the bigger one is useful for the offset Fenders when you’re deliberately trying to raise the bridge height). The shims fit a standard neck pocket and even have a marked line to show where to cut for a squared-bottom pocket.
What is a stainless steel shim?
Stainless steel shims (also called corrosion resistant steel shims or SS shims) will not stain, corrode or rust as easily as ordinary steel. Common shims made from stainless steel include shim plates, alignment shims, bearing shims and shim spacers/washers.
How are metal shims made?
Laminated shims are produced by surface-bonding layers of precision-metal foils or composite films and resin adhesive into sheets. Final shims range from 0.006″ to 0.250″ thick. The bond is made by heat and pressure, which hardens and reduces the resin to a point where it is almost undetectable.
Is shim a gender?
In referring to gender, “shim” denotes a non-determined sex of an unborn fetus. The word was coined by Steven Bill, a self-proclaimed etymologist, who became frustrated in not knowing how to refer to a friend’s unborn baby without knowing its gender.
What is a slotted wedge shim used for?
A slotted wedge shim will provide both full surface contact and the necessary spacing to let the relieving angle be upright. Standard slotted steel shims are usually flat. Slotted Steel Wedge Shims can be made to order however the extra manufacturing processes cause them to be expensive.
How do I choose the size of a wedge & Shim?
Size Selection: Measure the height or thickness of the stone. Wedges & Shims can generally split stone up to 4-6 times the length of the wedge. (e.g., The wedge of our ¾in Wedge & Shims is 4in long, so it is reasonable to assume it can split a stone that is between 16-24in thick/high.)
Where do the wedge and the Shim overlap?
Where the Wedge and the Shim overlap is in spacing. The wedge provides any thickness desirable, theoretically to the .001”, but only one contact point. The shim is constrained to an exact thickness but can make contact with as much surface area as desired.
What happens if you Hammer on wedges?
Aggressive or forceful hammering will cause unnecessary damage and wear to the Wedges & Shims. If the wedges become too firm before a crack develops, allow the Wedges & Shims to briefly “rest” before continuing to drive the wedges into the stone.
