Every Micro Motion Coriolis Meter uses the same measurement principle which has its roots in motion mechanics that include rules about how a liquid or gas will behave under specific operating conditions. With the Coriolis effect, the meter induces a vibration in two flow tubes.
How do you calculate flow meter error?
If the absolute accuracy is +/- 10 kg/h – the relative accuracy at full scale 1000 kg/h can be calculated as:
- a% = (+/- 10 kg/h) 100% / (1000 kg/h) = +/- 1%
- a% = (+/- 10 kg/h) 100% / (100 kg/h) = +/- 10%
- a = (+/- 1%) (1000 kg/h) = +/- 10 kg/h.
- a = (+/- 1%) (100 kg/h) = +/- 1 kg/h.
How do you clean a Coriolis flow meter?
Solution
- A safe, non-corrosive cleaning solution is applied to break up the materials that coagulate within the meter.
- The Coriolis is pressure-washed.
- The Coriolis tubing is inspected using a digital microscope to ensure all obstructions are removed.
How does a Micromotion work?

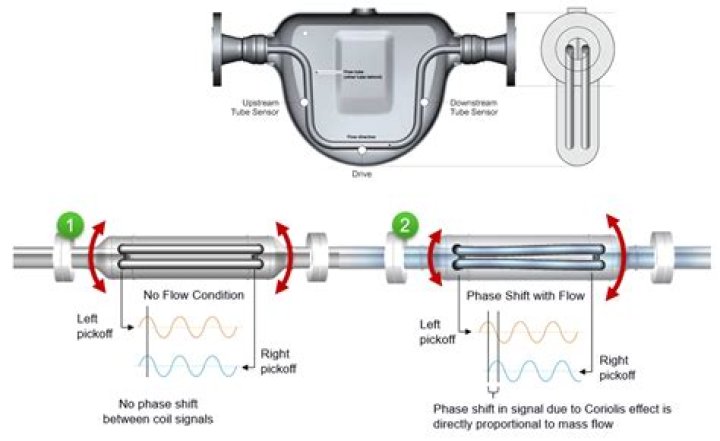

The Coriolis Effect – The Micro Motion flow meter’s working principle. If there’s no flow, then both pickoffs of the Micro Motion flow meter vibrate at the same frequency, creating identical waveforms. When you have flow, it creates the Coriolis effect, a small twist that phase-shifts the waveforms from the pickoffs.
What is Micro Motion transmitter?
Powered by MVD Technology, these versatile field-mount transmitters are built with an advanced architecture and provide a wide variety of I / O and application flexibilities, making them the top choice for compact integral mounting.
What is the principle of ultrasonic flow meter?
The working principle of ultrasonic flow meter is, it uses sound waves to resolve the velocity of a liquid within a pipe. There are two conditions in the pipe like no flow and flowing. In the first condition, the frequencies of ultrasonic waves are transmitted into a pipe & its indications from the fluid are similar.
What could cause the paddle flow meter to be inaccurate and fail in measuring the flow?
Paddlewheel flowmeters are less accurate at low flow rates due to rotor/bearing drag that slows the rotor. Be careful when measuring fluids that are non-lubricating because bearing wear can cause the flowmeter become inaccurate and fail.
How much does a Coriolis meter cost?
The first barrier to Coriolis world domination can be summed up in a single word: price. A one-inch line magnetic flow meter and transmitter, for example, can be had for $3,000 or less. A comparably sized Coriolis meter can run upwards of $9,000 or more.
What is Micromotion meter?
Micro Motion ELITE Peak Performance Coriolis Flow and Density Meter. With unmatched flow and density measurement for liquids, gases and multiphase flow, ELITE Coriolis flow meters are designed to deliver accurate, repeatable flow measurement for even your most challenging environments and applications.
Is Micro Motion part of Emerson?
With world-leading Micro Motion® Coriolis technology, Emerson Process Management brings you the leadership and expertise to keep your processes ahead of the curve.
Where can I find product data sheets for micro motion products?
Product data sheets and manuals are available from the Micro Motion web site at Return policy Follow Micro Motion procedures when returning equipment. These procedures ensure legal compliance with government transportation agencies and help provide a safe working environment for Micro Motion employees.
What is micromicro motion advanced phase measurement?
Micro Motion Advanced Phase Measurement is expertly designed to provide accurate measurement for complex processes and challenging multiphase flow environments.
What is the micro motion model 2700 manual for?
This manual helps you configure, commission, use, maintain, and troubleshoot Micro Motion Model 2700 transmitters with intrinsically safe outputs.
Who is micromicro motion?
Micro Motion. Setting the standard for measurement integrity in process, products and people with over 35 years of application expertise.
