Y = fftshift( X ) rearranges a Fourier transform X by shifting the zero-frequency component to the center of the array.
- If X is a vector, then fftshift swaps the left and right halves of X .
- If X is a matrix, then fftshift swaps the first quadrant of X with the third, and the second quadrant with the fourth.
How do I move a window in Matlab?
If you want to move or resize a window using the mouse you might as well forgo the menu options and simply press the mouse button while over its title or border, respectively, and drag.
How do you make a spectrogram in Matlab?
3D Spectrogram Visualization
- View MATLAB Command. Generate two seconds of a signal sampled at 10 kHz.
- fs = 10e3; t = 0:1/fs:2; x1 = vco(sawtooth(2*pi*t,0.5),[0.1 0.4]*fs,fs);
- spectrogram(x1,kaiser(256,5),220,512,fs,’yaxis’) Change the view to display the spectrogram as a waterfall plot.
- view(-45,65) colormap bone.

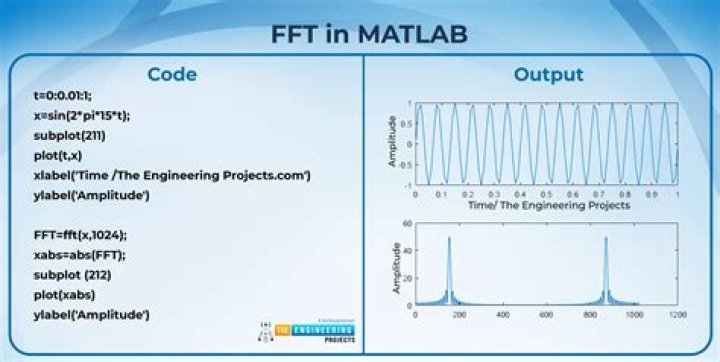

How do I show FFT in Matlab?
Description. Y = fft( X ) computes the discrete Fourier transform (DFT) of X using a fast Fourier transform (FFT) algorithm. If X is a vector, then fft(X) returns the Fourier transform of the vector. If X is a matrix, then fft(X) treats the columns of X as vectors and returns the Fourier transform of each column.
What is an FFT shift?
Y = fftshift(X) rearranges the outputs of fft , fft2 , and fftn by moving the zero-frequency component to the center of the array. It is useful for visualizing a Fourier transform with the zero-frequency component in the middle of the spectrum. For vectors, fftshift(X) swaps the left and right halves of X .
How do you do a moving average in Matlab?
M = movmean( A , [kb kf] ) computes the mean with a window of length kb+kf+1 that includes the element in the current position, kb elements backward, and kf elements forward. M = movmean(___, dim ) returns the array of moving averages along dimension dim for any of the previous syntaxes.
How do you expand a workspace in Matlab?
MATLAB Toolstrip: On the Home tab, in the Environment section, click Layout. Then, in the Show section, select Workspace.
How does spectrogram work in Matlab?
Description. s = spectrogram( x ) returns the short-time Fourier transform of the input signal, x . Each column of s contains an estimate of the short-term, time-localized frequency content of x . s = spectrogram( x , window ) uses window to divide the signal into segments and perform windowing.
What is spectrogram Matlab?
spectrogram computes the short-time Fourier transform of a signal. The spectrogram is the magnitude of this function. S = spectrogram(x) returns the spectrogram of the input signal vector x . By default, x is divided into eight segments.
What does FFT do in MATLAB?
The fft function in MATLAB® uses a fast Fourier transform algorithm to compute the Fourier transform of data. Consider a sinusoidal signal x that is a function of time t with frequency components of 15 Hz and 20 Hz. Use a time vector sampled in increments of 1 50 of a second over a period of 10 seconds.
What is FFT() in MATLAB?
Introduction to Matlab fft () Matlab method fft () carries out operation of finding Fast Fourier transform for any sequence or continuous signal. A FFT (Fast Fourier Transform) can be defined as the algorithm that can compute DFT (Discrete Fourier Transform) for a signal or a sequence, or compute IDFT (Inverse DFT).
What is the use of FFT in NumPy?
Function fft (f) treats the values along the first non-unit array dimension as vectors and returns the Fourier transform for each vector. Deriving np point FFT for Gaussian Signal. The output window displays the Gaussian signal formed as function ‘f’ in time domain and np-point FFT is computed using fft () resulting in frequency domain signal ‘PF’.
How to derive FFT for random noise signal?
Deriving FFT for Random Noise Signal. The output window displays the noise signal formed as function ‘f’ in time domain and single sided amplitude spectrum is computed using fft () resulting in frequency domain signal ‘F’. The nature of the resultant FFT signal varies depending on the type of input signal or data such as:
How to derive NumPy point FFT for Gaussian signal?
Deriving np point FFT for Gaussian Signal. The output window displays the Gaussian signal formed as function ‘f’ in time domain and np-point FFT is computed using fft () resulting in frequency domain signal ‘PF’. The nature of the resultant n-point FFT signal varies depending on the type of input signal or data such as:
