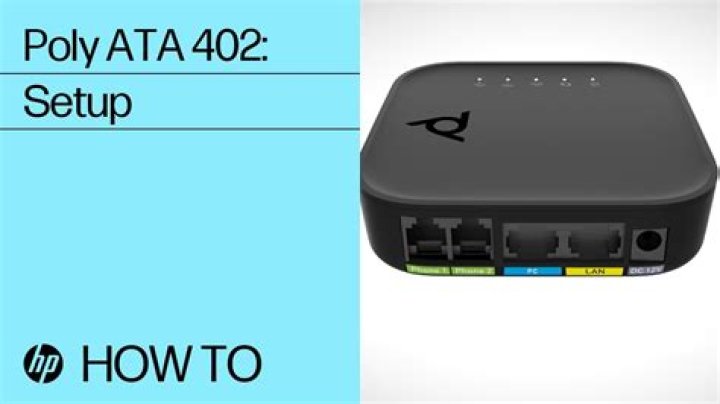

Step 1 Connect the network cable to your network and to the NETWORK port on the ATA. Step 2 Connect the phone cable to the PHONE 1 port on the ATA and to your analog device (phone or fax machine). If connecting a fax machine, connect it directly to the ATA.
How do I reset my ATA 186?
Resolution/Steps
- Using an analog phone with full keypad (Unhooked) plugged into the “Phone 1” port. Press the function button on the top of the ATA. “Phone 1” Port. Function button:
- Enter the following: 322873738#*
- Enter * to save.
- Hang Up.
What is an ATA with router?
An analog telephone adapter (ATA) is a device for connecting traditional analog telephones, fax machines, and similar customer-premises devices to a digital telephone system or a voice over IP telephony network.
How do I log into Cisco ATA?
Enter the old password (“admin”) and then enter the new password. From a factory default baseline on a Cisco 192 ATA device, plug an Ethernet cable into to the Ethernet slot of the device. Enter this IP address into your browser 192.168. 15.1 to be prompted for login.
How do I update my Cisco ATA 186 firmware?
3. Reset the Cisco ATA to upgrade the firmware….
- Using your web browser, login to the Cisco Unified OS Administration web page.
- Under the Software Upgrades menu, select Install/Upgrade.
- Fill in the appropriate values in the Software Location section for the file you downloaded above, and click Next.
How do I connect my ATA adapter?
How do I provision an analog adapter (ATA)?
- Plug the Ethernet cord into the Internet port and the analog device into the Phone 1 port. Do not use the Phone 2 or Line ports.
- Plug in the power adapter.
- Enter admin for the device username and password. Note: If that password does not work, try voipInfo.
- Click Submit.
How do I connect my analog phone to my computer?
How to Connect a Telephone to a PC
- Telephone line jack. Locate the end of the telephone cord. Video of the Day.
- Telephone USB. Connect the telephone cord jack to the USB telephone adapter.
- USB port. Plug the USB into your computer’s USB port.
How do I log into network configuration utility?
To open the web-based configuration utility: Open a Web browser. Enter the IP address of the WAP device that you are configuring in the address bar on the browser, and then press Enter. The Login page opens.
How do I connect my ATA to my router?
Use the Ethernet cable that came with your ATA to connect the LAN or Internet port on your ATA to an available LAN port on your router. Then use a standard RJ11 telephone cable to plug your touch-tone analog phone into the PHONE 1 port of your ATA. power source. It will take about two to three minutes to fully boot.
How do I configure the Cisco ATA 186?
There are three ways to configure the Cisco ATA 186: The Dynamic Host Configuration Protocol (DHCP) server is enabled by default from version 2.x and later. When the DHCP field is set to 1, the Cisco ATA 186 contacts the DHCP server to get the IP address, subnet mask, and default route.
What is ATA 186 used for?
Introduction The Cisco Analog Telephone Adaptor (ATA) 186 is a handset-to-Ethernet adaptor that interfaces regular analog phones with IP-based telephony networks. The Cisco ATA 186 has two voice ports that were designed to support legacy analog touch-tone telephones.
What protocol does ATA 186 use to communicate with CallManager?
In the Cisco CallManager environment, H.323 or SCCP are the protocols used for communication between the Cisco CallManager and the ATA 186. However, in this document, only the communication between the ATA 186 and the Cisco CallManager that uses SCCP is discussed.
What is the difference between ATA 186 and FXS ports?
Unlike the regular Foreign Exchange Station (FXS) ports, these cannot be interfaced with a PBX as the Cisco ATA 186 cannot send out digits on these ports. Both voice ports can be used simultaneously as long as they are configured with different telephone numbers.
