Edit a swatch library

  1. Choose File > Open, locate and open the library file. By default, swatch library files are stored in the Illustrator/Presets/Swatches folder.
  2. Edit the colors in the Swatches panel and save your changes.

Where is pattern option in Illustrator cs5?

Use the Selection tool to select the artwork and bounding box (if any) that will make up the pattern tile. Do one of the following: Choose Edit > Define Pattern, enter a name in the New Swatch dialog box, and click OK. The pattern displays in the Swatches panel.

Can you change the color of a pattern swatch in Illustrator?

Select the main element in the pattern. It will be highlighted by a square. Double click the fill color in the Tool Panel on the left. Choose your desired color from the pop-up color picker and click OK. Your new colored pattern swatch will now appear in the Swatch Panel.

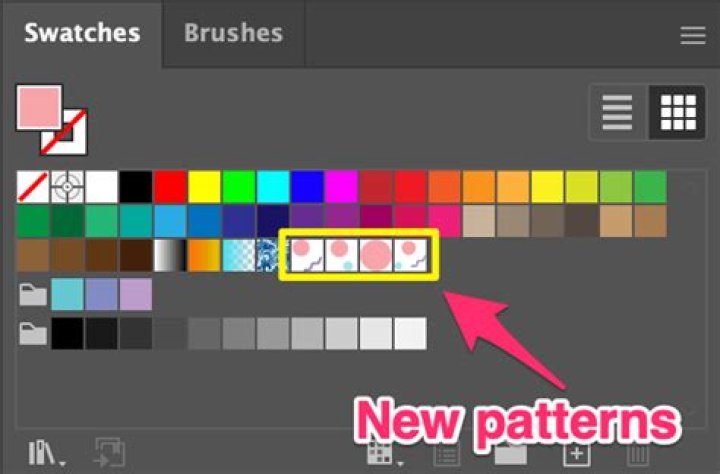

How do I add a pattern to a swatch in Illustrator?

Do one of the following:

  1. Choose Edit > Define Pattern, enter a name in the New Swatch dialog box, and click OK. The pattern displays in the Swatches panel.
  2. Drag the artwork to the Swatches panel.

How do you fill a pattern in Illustrator?

Use the selection tool and click on the pink cactus shape in the illustration to select it. At the top of the Swatches panel, click on the pink fill square so that it is in front. The last swatch in the panel is a pattern named “pink cactus.” Click on that swatch to fill the selected shape with the pattern.

How do I use pattern options in Illustrator?

Create or edit a pattern

  1. To create a pattern, select the artwork that you would like to create the pattern from, and then choose Object > Pattern > Make.
  2. To edit an existing pattern, double-click the pattern in the pattern swatch, or select an object containing the pattern and choose Object > Pattern > Edit Pattern.

How do you make a line pattern in Illustrator?

How To: Create a Seamless Diagonal Pattern in Illustrator

  1. Start with a “square” artboard.
  2. Create your vertical line.
  3. Align your shape to the top right corner.
  4. Rotate 45 degrees.
  5. Duplicate your shape and align it to the opposite corner.
  6. Make a Blend between the 2 shapes.
  7. Expand your blend.
  8. Create a square to crop with.

How do I recolor a pattern in Illustrator?

Start by selecting your swatch and choosing Edit > Edit Colors > Recolor Artwork, or choose the Recolor Artwork icon from the control bar. The Recolor Artwork dialog will launch in “Assign” mode where there are 2 columns of colors: Current Color(s) and New.

How do you make a swatch pattern?

Create your own pattern swatch in 5 easy steps with Illustrator

  1. Arrange vector elements into a square. Go to View > Show Grid.
  2. Position your elements.
  3. Create an “invisible box”
  4. Drag it into the swatches panel.
  5. Voila + save.

How do I scale a pattern in Illustrator?

If you want to scale patterns in Illustrator you can use the Scale Tool (S). You can double-click on the Scale Tool in your toolbar or you can go to Object > Transform > Scale to open it. Another way to access the Scale Tool is by right-clicking on your object and selecting Transform > Scale from the menu.

How do I make a pattern in Illustrator CS5?

Adobe Creative Suite 5 (Adobe CS5) Illustrator has the facility to build and edit patterns. To build a simple pattern start by creating the artwork you want to use as a pattern on your artboard — polka dots, smiley faces, wavy lines or whatever. Then select all components of the pattern and drag them to the Swatches panel.

How do I edit my pattern swatches?

Open the .ai/.eps file containing the pattern swatches. Go to your swatches panel, Window > Color > Swatches (or click F5) Now double click on the swatch of the pattern you like to edit. This will take you to a Pattern Edit mode, you can select all (Ctrl + A) and then change stroke or fill colors according to your preferences.

How do I make a swatch library appear in illustrator?

To make a swatch library appear each time Illustrator is started, select Persistent from the swatch library’s panel menu. In the Swatches panel menu, choose Open Swatch Library > [library name]. In the Swatches panel, click the Swatch Libraries Menu button , and choose a library from the list.

How do I change the scale of an object in illustrator?

To scale a pattern, but not the object it’s filling, double-click the Scale tool, shown in the margin. In the Scale dialog box that appears, type the value that you want to scale and deselect all options except Patterns. This method works for the Rotate tool as well. Choose to scale or rotate only the pattern, not the object.
